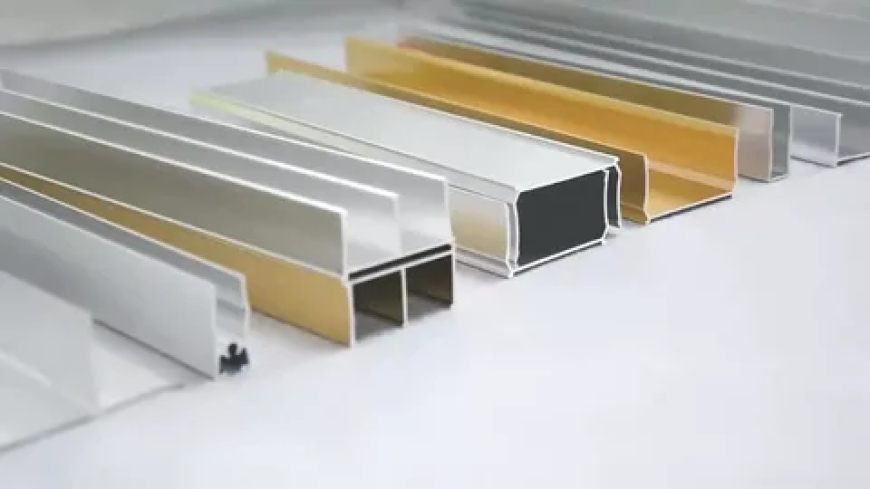

Anodised Aluminium Sections: Benefits, Uses & Finishes Explained
Anodised aluminum has gained popularity over the years to be among the most demanded materials in the construction and designing industry. This amazing procedure makes the common aluminium an impressive, permanent, and most functional material that finds numerous applications in different industries. The anodising work leaves an aluminium surface hardened and with protection against corrosion, looking at the same time beautiful. Such an electrochemical treatment does not only reinforce the material but also offers outstanding resistance to corrosion, wear and interactions with the environment. The anodised aluminium sections have changed our perspective in designing and functionality; this has been applied in architecture set up such as building frames and in consumer electronics. Learning about this multi-purpose material provides access to novel solutions in the construction, fabrication and creative practices in applications where a combination of beauty and performance is needed.
1.What is Anodising?
Anodising applies an electrical current to form a controlled oxide coating on aluminium surfaces, it is an electrochemical process. In this process, an aluminium piece becomes an anode in an electrolytic cell whereby an electric current enables the flow of an acid solution. This will result in a depositing of oxide on the aluminium surface which will oxidise under a controlled situation to produce thick porous oxide which is a part of the metal itself. The anodised layer and the anodising process causes a bond that is so strong because it grows internally within the aluminium whereas the coating normally used like paint is just on the surface.
2.The Science Behind Anodising
The anodising activity is based on the basic knowledge of electrochemistry producing permanent alterations on the surface fabric of aluminium. In order to initiate oxidation, aluminium has to be placed in an electrolytic bath of sulfuric acid, chromic acid or oxalic acid and an electric current runs through the substance. After combination with oxygen ions of an electrolyte at the surface, the aluminium atoms crystallize into aluminium oxide which grows in a perpendicular direction to the surface. This designs a honey-bean like structure with millions of tiny holes that may be sealed or loaded with dyes to be colored. The resulting oxide is in fact stronger than the original aluminium giving some remarkable durability. The characteristics of the final product of an anodised layer are affected by temperature, current density, acid concentration and processing time.
3.Types of Anodising Processes
There are three predominant anodising processes characteristic of this industry, which also carry varying benefits to any particular application. The most typical one is the sulfuric acid anodizing providing the clear porous oxide layer which is easily dyed and guarantees a high level of corrosion resistance. This is done by producing layers that are normally 12-25 micrometers in depth and this is ideal and suited in architectural and decorative use. Thinner, more flexible coating of chromic acid anodising is best suited to aerospace use where low weight is important. Hard anodising or also referred to as Type III anodising produces very thick and resilient layers of up to 125 micrometers thick which are used in applications where a high wear could be encountered.
4.Key Benefits of Anodised Aluminium
The anodised aluminium contains several benefits which are better than pure untreated aluminium in most of the applications. The main advantage is outstanding corrosion resistance due to the anodised layer that creates a barrier towards moisture, chemicals and environmental elements. This coverage leaves the material with a long lifespan by a long margin of decades without repairs. The process as well increases the hardness of the surface such that anodised aluminium is less prone to scratches, abrasion and wear in general. The anodised layer cannot become chipped, peeled, or flaked off as compared to the other kinds of coatings such as paint since it is integrated into the metal itself. It offers better thermal attributes and does not lose electrical conductivity of the material.
5.Enhanced Durability and Longevity
The life expectancy of anodised aluminium parts is much higher than parts of untreated aluminium or of painted surfaces. The barrier formed by the anodised layer stops the underlying aluminium from oxidizing naturally, thus preventing the occurrence of corrosion and weakening of the structure. This protection has great value especially in adverse situations in places that are exposed to elements that would destroy untreated materials by salt air, industrial chemical spills or even weather extremities. The crystal structure of the oxide layer renders an outstanding resilience to effects of hit, scratch and overall wear, allowing its face and functionality to be retained over many decades.
6.Superior Corrosion Resistance
Anodised aluminium provides great flexibility of aesthetics that include numerous colours and finishes that will not fade with time. The reason is that, through the anodising process, a porous layer is formed and this porous layer can easily take on dyes rendering the material capable of taking on permanent and strong colors which effectively becomes a part of the material. The common shades are natural silver, bronze and black, gold and custom shades that may be matched with individual designing demands.
7.Aesthetic Appeal and Color Options
Anodised aluminium is extremely aesthetically versatile owing to an impressive palette of colours and finishes which are reliable over long periods. Anodising induces a porous structure upon the metal, to which dyes can be readily fixed, and so give bright, permanent coloration becoming an inseparable part of the material. Market colors are in natural silver, bronze and black also gold and several custom colors, depending on the requirements of the design. The color is applied in the anodising process, so the color is impregnated in the oxide layer instead of being applied on the surface as a paint is. This combination means that colors are colorful and do not fade easily even on the surface that is under slight scratches and other wear.
Conclusion
Aluminium anodised sections amount to an ideal union of utility, strength and beauty that has revolutionised various industries. Whether in the form of the marvelous architectural beauties or in that of the daily consumer items, this diverse material is still finding worth in its outstanding performance and durability. JM Aluminium anodising process adds a protective film that strengthens aluminium's natural properties while combining them with unlimited design freedom through an abundance of colors and finishes.
